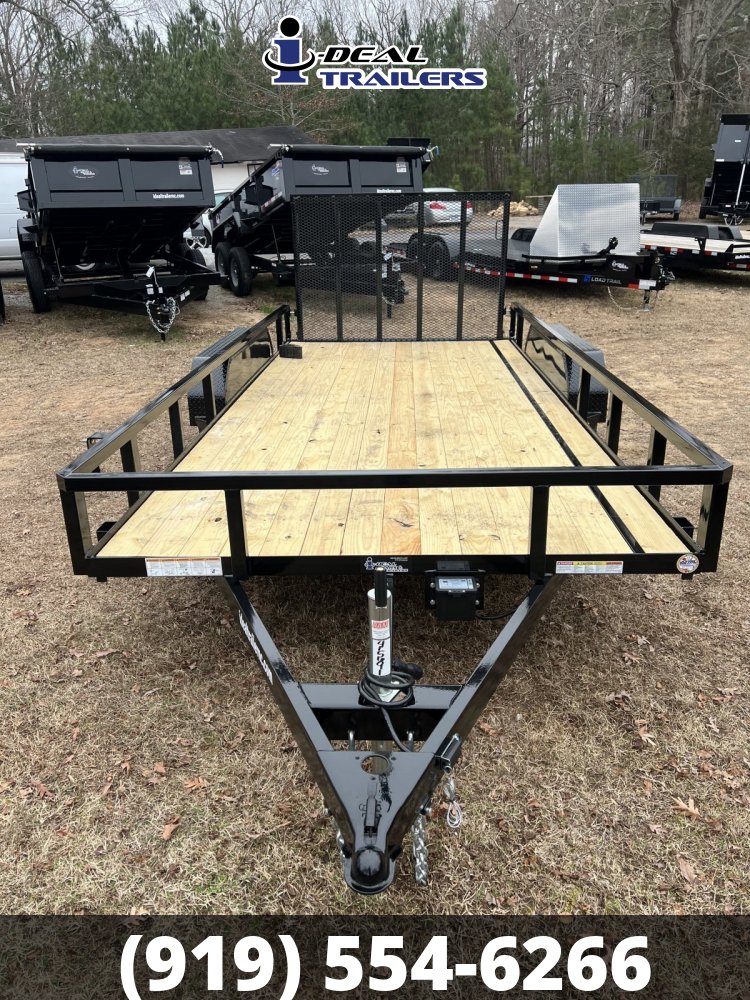

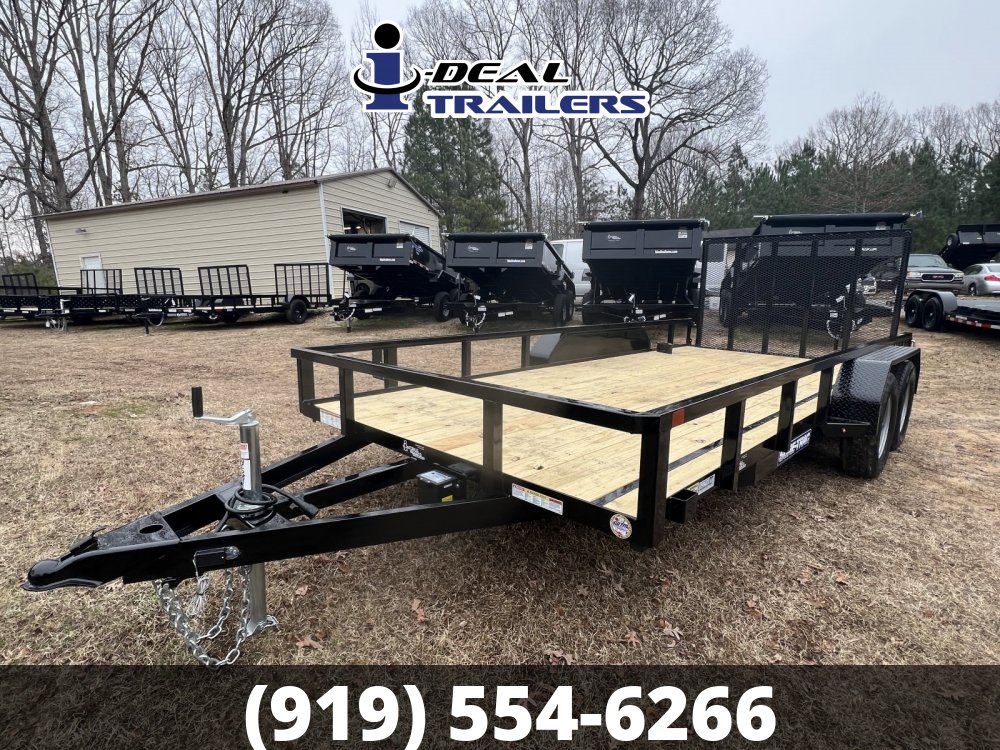

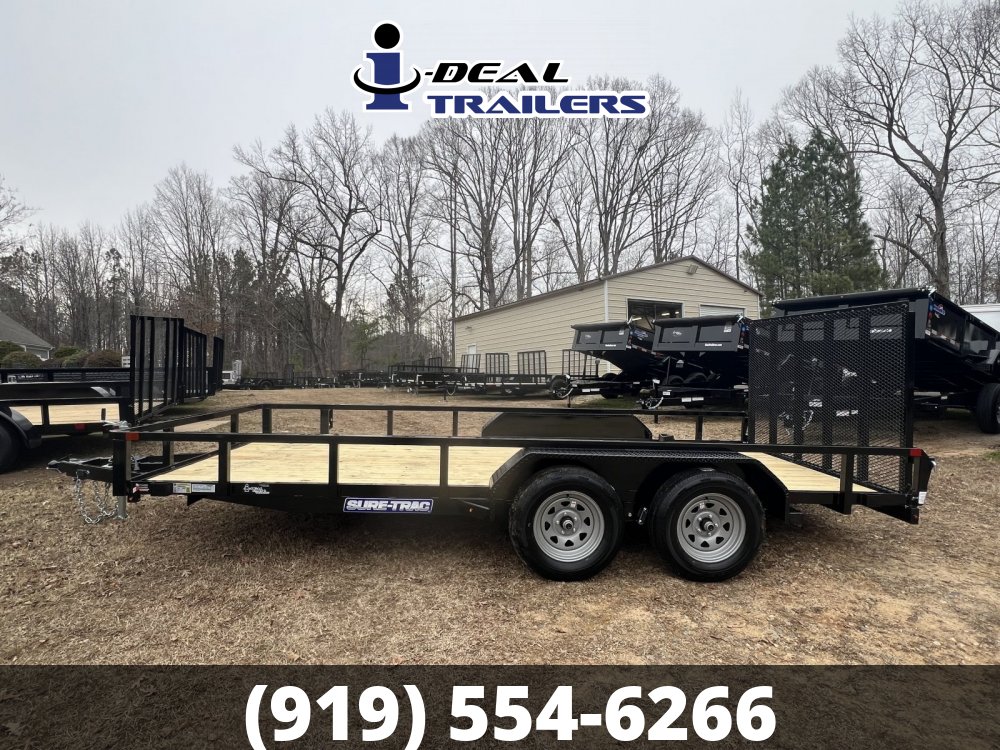

7x16 Tube Top Utility Trailer 7K Tandem Axle

Model # ST8216TAT-B-070
13" Tall Sides
 2" x 2" Tube Top Rail (7k Models)
Tube Uprights
2-5/16" A-Frame Coupler
7-Way RV-Style Molded Plug
Breakaway Switch w/ Battery
Wiring Enclosed in Tubular Steel
Setback 2k Zinc Plated Jack (7k Models)
Fold-Flat HD Ramp Gate w/ Handle (7k Models)

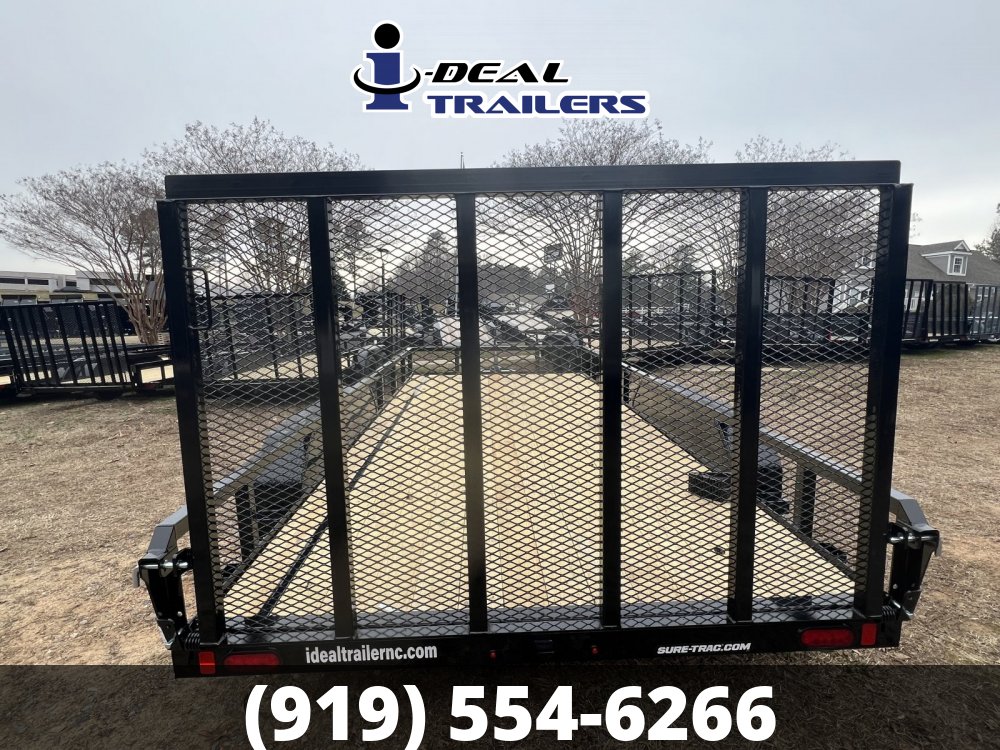

Spring-Assisted Rear Ramp Gate
Self-Retained Gate Pins
Tread Plate Fenders
Brakes on Both Axles
Easy Lube Hubs
Bed Width 81.5"
Deck Height 18"
Coupler Height 16"
Finish Powder Coated High Gloss Black
Overall Length 239"
Bed Length 192"
Gate 7k - 2 x 2 Tube, Mesh Covered, Full-Width Spring Assist Ramp Gate w/ Handle
15" Radial Tires
Silver Wheels
Wheel Assembly, 205/75R15 LRC (7k Models)
Powder Coat Finish
2" x 6" Pressure Treated Decking
Front and Rear Board Retainers
Stake Pockets
Spare Tire Carrier
All LED Lights
GVWR  7000lbs
GAWR (lbs./axle)  3500
Curb Weight 1820
Payload 5180
Frame 3 x 2 x 1/4 Angle
Crossmembers 3 x 2 x 3/16 Angle (24" On-Center)
Top Rail Top Rail 2 x 2 Square Tube
Tongue 4" Channel (A-Frame)
Uprights 2 x 2 Square Tube
Coupler 2-5/16" A-Frame Ball Coupler
Jack Setback 2k Zinc Plated Jack
Fenders Tread Plate, Double Brake
Easy Lube Axles Cambered Brake (Both Axles)
Suspension Equalized Leaf Spring
Tires 205/75R15 LRC
Wheels 15", 5 on 4.5, Radial Tires
Decking 2 x 6 Pressure Treated Pine
Manufacturer's Warranty
